#16 Cobalt Split Point Stub Drill Bit

(D/ASTCO16)

163.9
Package Qty: 1
Total Price: $163.90
($163.9/ea)

Quantity:
Add to Cart Add to Quote
Cobalt screw machine drills (also know as stub or stubby drills) are manufactured to Aerospace Standard 907. The 135 degree split point is self-centering and reduces thrust. Ideal for portable or machine drilling. Short, rugged construction performs well
Order by 2:30PM (CST) for same-day shipping! Repeat and volume customers, call or request a quote for the best possible pricing.

Specifications D/ASTCO16

  • Size: #16
  • Material: Cobalt
  • Finish: Gold Oxide
  • Flute Length: 1-1/8"
  • Overall Length: 2-3/16"
  • Point: Split Point
  • Shank Type: Round
  • Point Angle: 135
  • Number of Flutes: 2
Features
  • Screw machine drills are also know as stub or stubby drills. They have a short, rugged construction performs well in a broad range of materials.

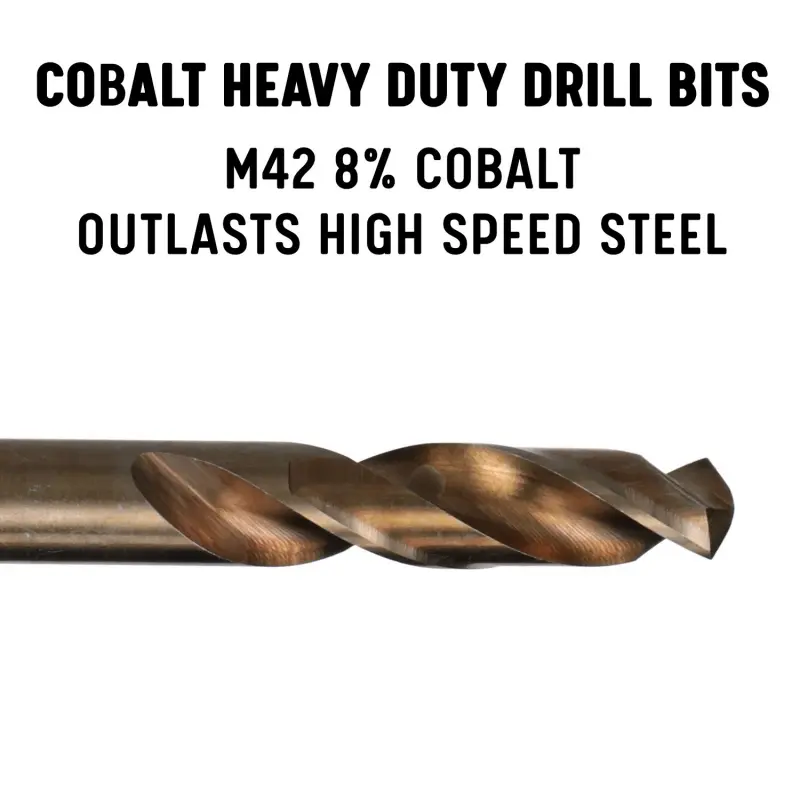

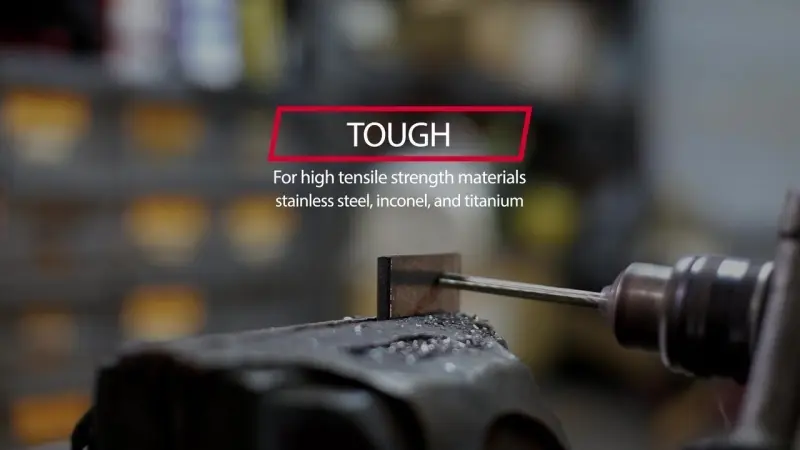

  • Cobalt drill bits are are effective in drilling tough, high tensile strength materials
  • Display high red hardness, permitting speeds up to 30% greater than with conventional M2 high speed

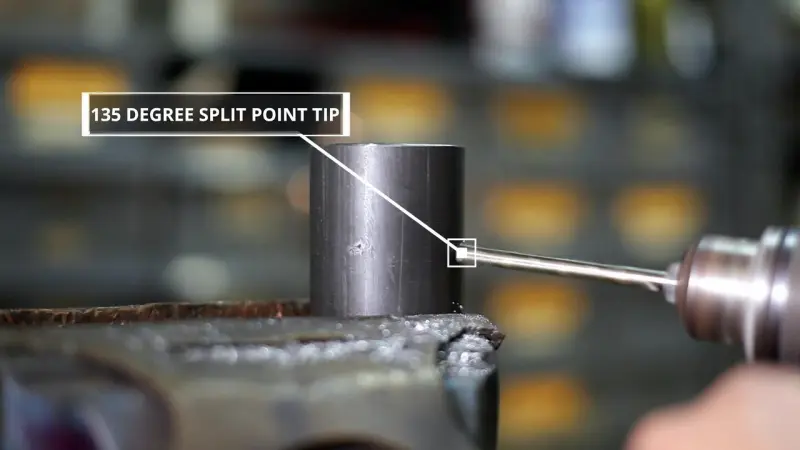

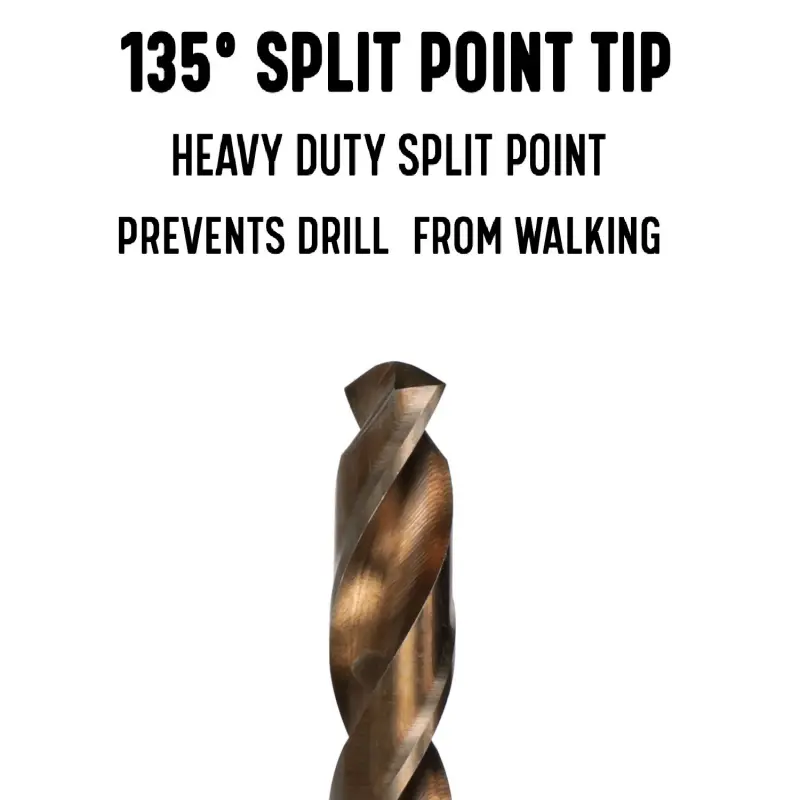

  • 135° split point tip for fast penetration and accurate drilling. Sizes smaller than 1/16 or #52, and larger than 1/2 have the 118 standard point
  • Popular in the automotive and construction industries. They are often used in screw machine setup where spindle clearance is limited

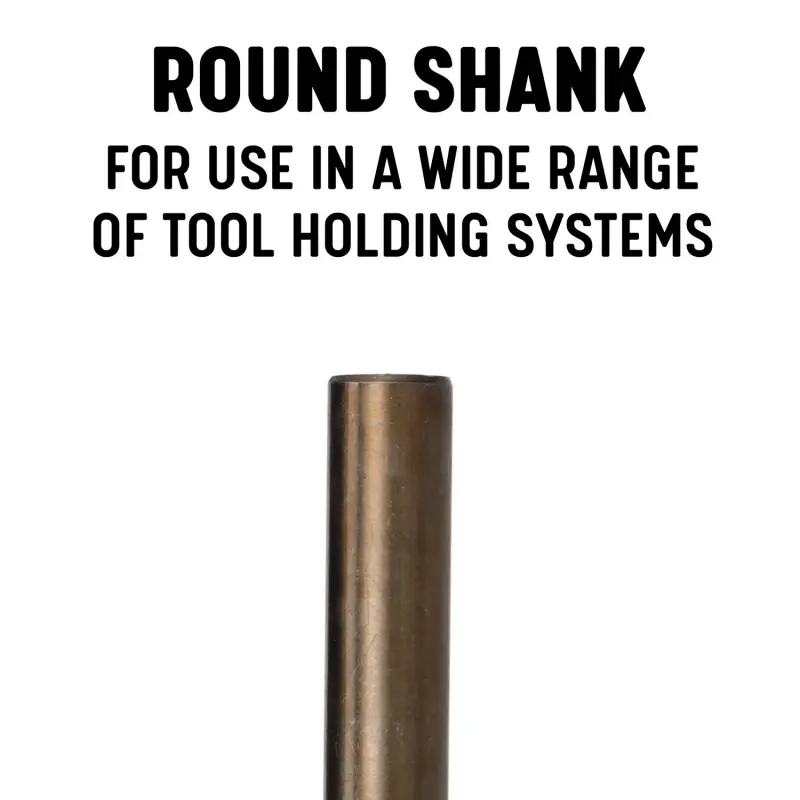

  • Round shank for use in a wide range of tool holding systems
